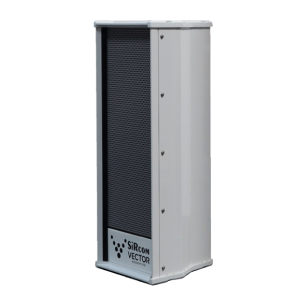

LS-30

30 Wat Line Source Loud Hailer

Efficiency:	118 dB at 1W/1m
Maximum SPL:	134dB at 30W/1m/2kHz
Horizontal beam width:	110 degrees
Vertical beam width:	40 degrees
Frequency response:	400Hz to 7kHz (+/- 8dB)
Maximum range at 70dB:	1000 m / 0.6 miles
Maximum range at 80dB:	316 m / 0.2 miles
Speech Transmission Index (STI):	.98
Weight:	10 kg /22 lb

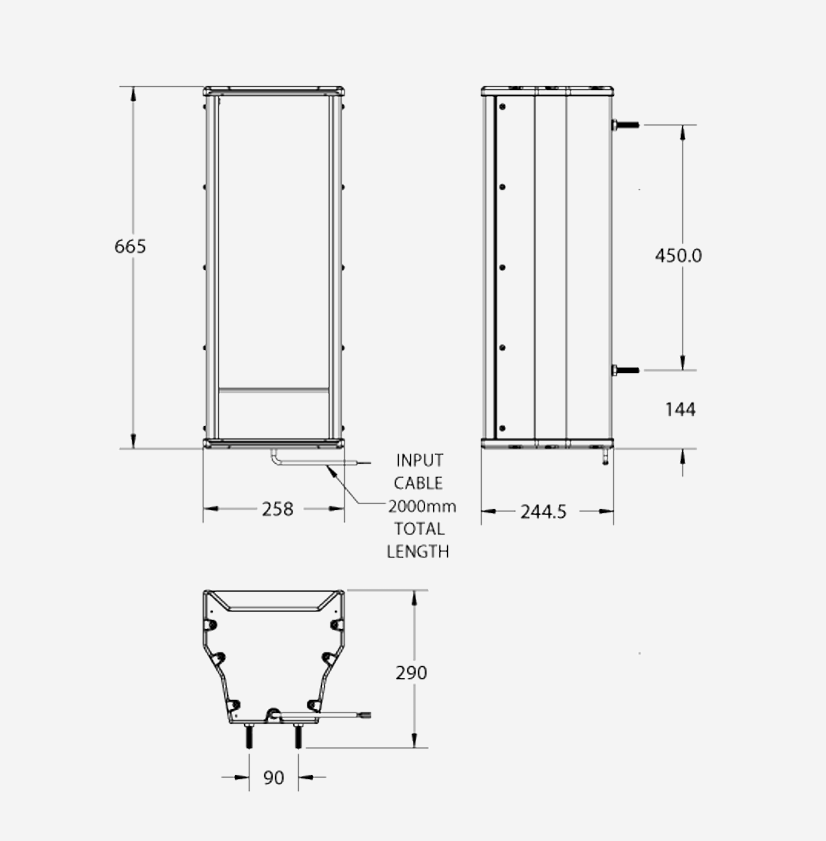

Height:	665 mm / 26.2 in
Width:	259 mm / 10.2 in
Depth:	245 mm / 9.6 in
Power handling:	30 and 15 Wat input taps at 100 Volts
Input impedance at 30W:	330 Ohms
Input impedance at 15W:	665 Ohms
Operating temperature:	-30C to +60C
Dust/moisture protection:	IPX6
Materials:	5052-H32 Aluminum, architectural grade powdercoat, 300 series stainless steel hardware
